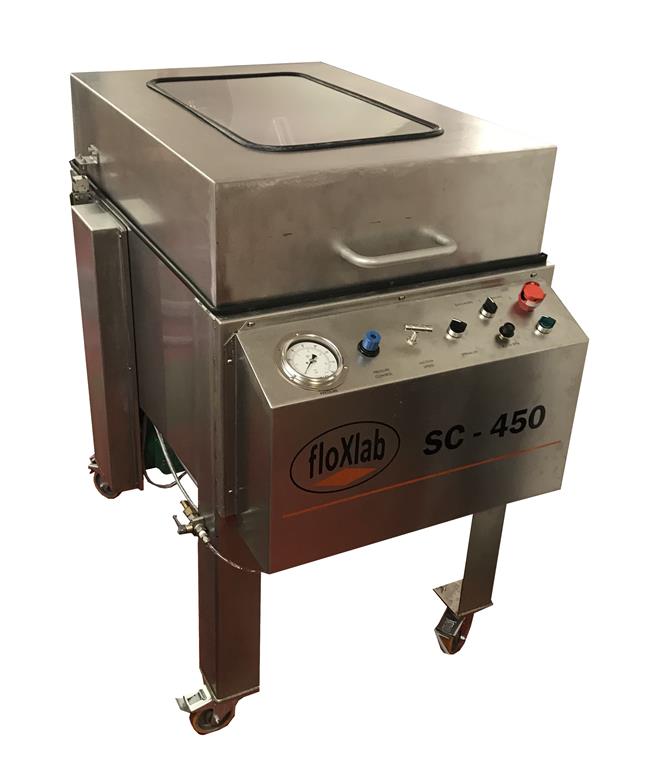

SC-450 Automated specimen cutting saw

ASTM D4543

Description

This SC-450 is crafted for the purpose of precisely cutting rock specimens to a specific dimension. The mechanism involves moving the entire specimen toward the cutting blade at a preselected, customizable speed using a hydraulic power feed with variable rates. The tool incorporates several essential components, including a fixture to securely hold the specimen, a system for advancing the specimen, a diamond-impregnated cutting blade, an emergency stop switch for safety, a coolant delivery system and a collection pan to capture debris. The cutting area is enclosed by a metal covering that features a viewing window. This setup allows for the safe and controlled cutting of rock specimens, with the capability to achieve diameters ranging from 20 mm to 170 mm.

Specifications

Standard

ASTM D4543

Specimen diameter

from 20 mm to 170 mm

Specimen length

up to 400 mm

Saw blade diameter

450 mm (18 inches)

Motor power

2,200 watts, 3,000 RPM

Compatible coolants

water (usually), oil

Weight

250 kg

Dimensions (WxLxH)

780x1600x1260 mm

Required power supply

220 VAC, 50/60 Hz

Required water supply

50 psi

Benefits

Can be used for all standard specimen sizes
