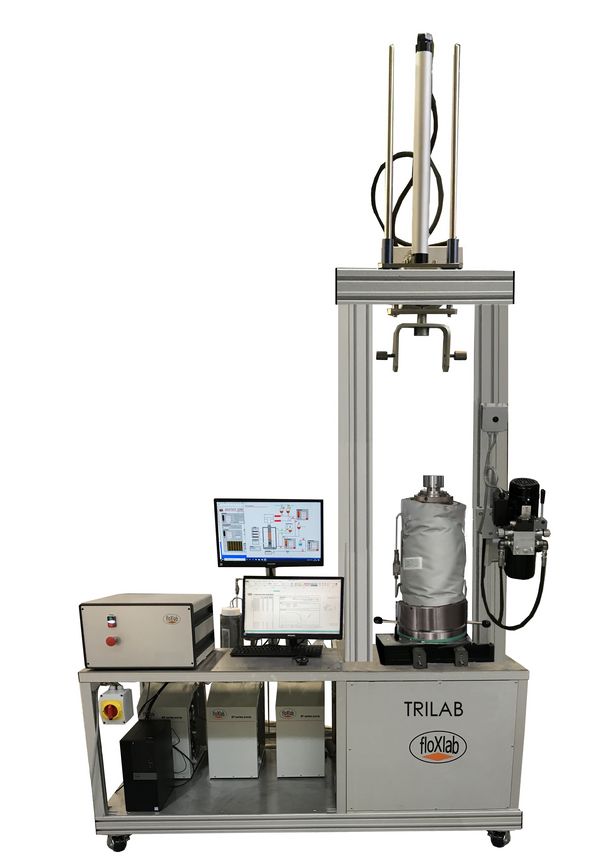

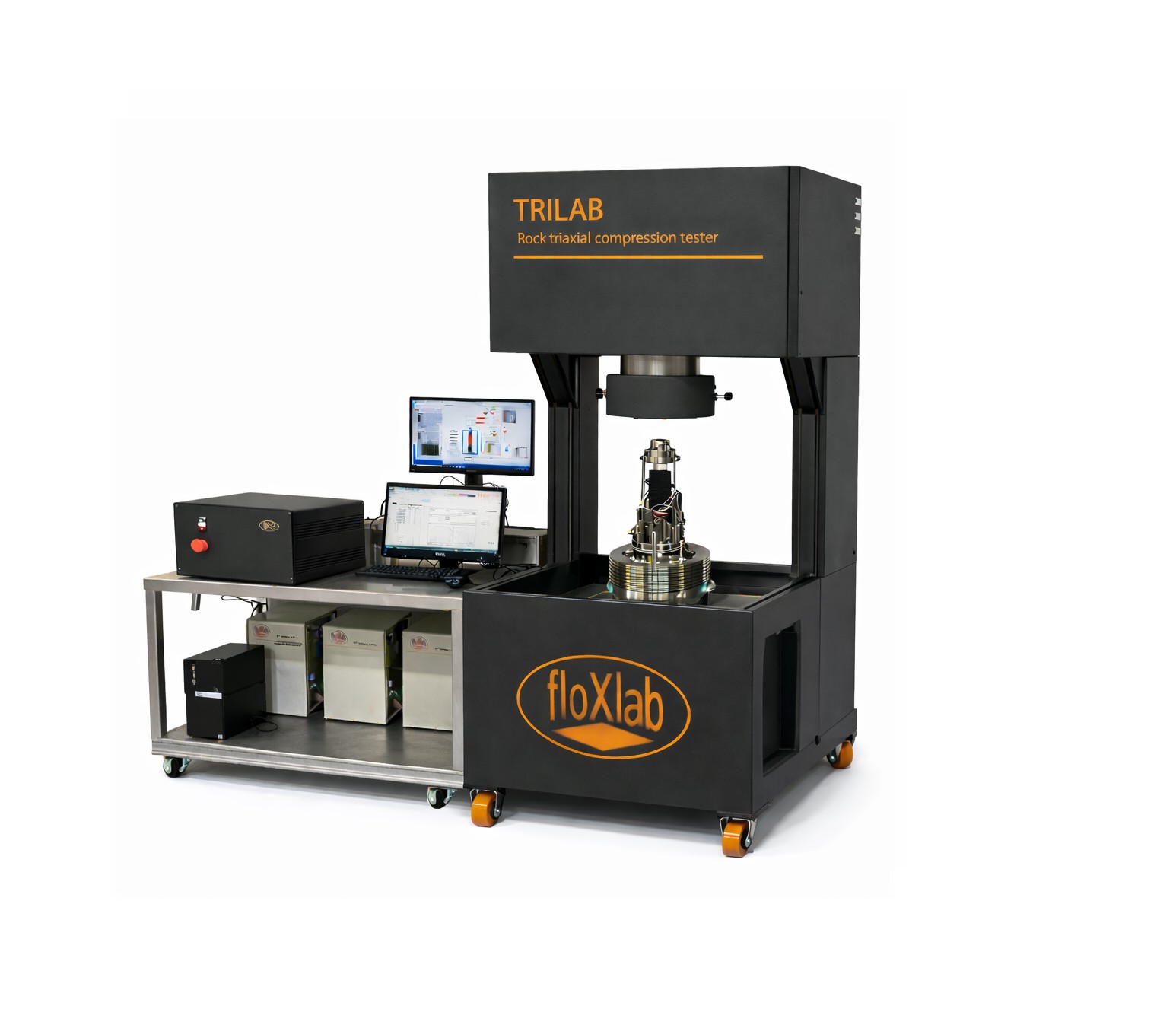

TRILAB Rock triaxial test system

ASTM D7012

The TRILAB apparatus is designed for the study of stress-strain behavior and the compressibilities of bulk and pore volumes under in-situ stress and temperature conditions. Governed by a computerized control interface, the system features a balanced deviatoric triaxial cell, which is instrumented with integrated in-vessel strain gauges, a thermal regulation system, an internal load cell, and a lifting device. To induce and regulate axial, pore, and confining pressures, the system is equipped with three high-pressure syringe pumps. The apparatus is modularly designed to accommodate a range of maximum cell pressures and test specimen geometries.

Specifications

Maximum axial load

Model 1: 1000 kN

Model 2: 2,500 kN

Maximum confining pressure

70 / 140 MPa

Maximum pore pressure

70 / 140 MPa

Temperature range

ambient  to 150°C (300F)

Specimen diameter

Model 1: up to 54.7 mm (NX)

Model 2: 54.7 mm to 100 mm

Specimen length

twice the diameter

Wetted parts

Stainless steel

Power supply

110-220VAC, 50/60Hz

Benefits


Easy specimen loading operations

Versatile machine capable of a wide range of petrophyscial and mechanical tests.

Automated tests

Delivers unparalleled accuracy and reliability

Achieve any desired stress path

Versatile, can accommodate various specimen diameters up to 100-mm.
