Description

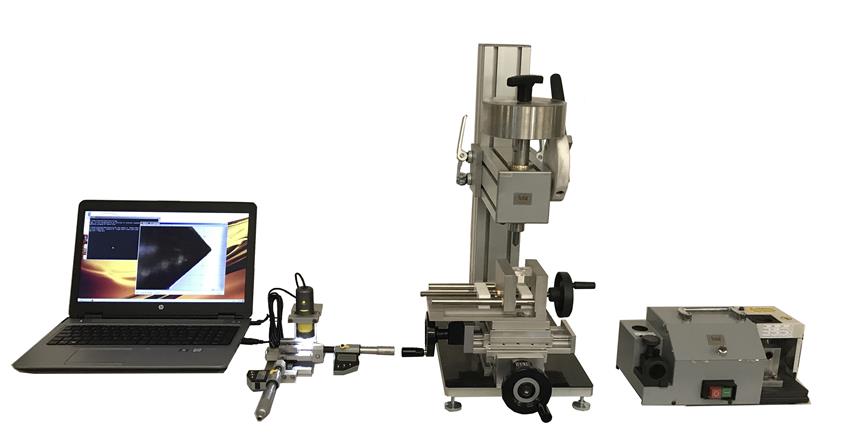

The CAI-70 is a precision instrument designed for the accurate determination of the rock abrasivity index (CAI), which is a crucial parameter used to classify rock materials based on their abrasiveness. The CAI is a dimensionless measurement derived from assessing the wear on a HRC55 Rockwell Hardness steel stylus tip after it has been employed to abrade a specimen with a normal force of 70N.This apparatus comprises several key components, including a stationary stylus, a deadweight (70N) positioned atop the stylus, a sturdy load frame, a robust vice for securely clamping the rock sample, and a cross table with two adjustable axes to align the specimen precisely along both horizontal axes. Additionally, the device features a graduated knob that allows for precise control of the scratch distance with an accuracy of 0.01 mm. Optional accessories include an indenter visualization system, spare indenters, and a sharpening tool. The indenter visualization system consists of a digital camera with support for the indenter and inspection software, which reveals the amount of wear on the stylus and correlates it to the abrasiveness index (CAI). The sharpening tool is used to quickly restore a worn stylus for subsequent scratch tests.
Specifications
|
Standard
|
ASTM D7625-10.
|
|
Load
|
70 N
|
|
Maximum specimen height
|
150 mm (6 inches)
|
|
Maximum specimen diameter
|
76 mm (3.0 inches)
|
|
Scratch distance precision
|
0.01 mm
|
|
Steel Stylus
|
Rockwell Hardness HRC 54/56
|
|
Weight
|
25 kg
|
|
Dimensions (WxLxH)
|
330 x 500 x 500 mm
|
Benefits
ASTM-compliant, West model
Easy manual handling
Features precision slide for smooth movement of the rock specimen over the required scratch distance
Easy adjustment of the daylight for different specimen heights
