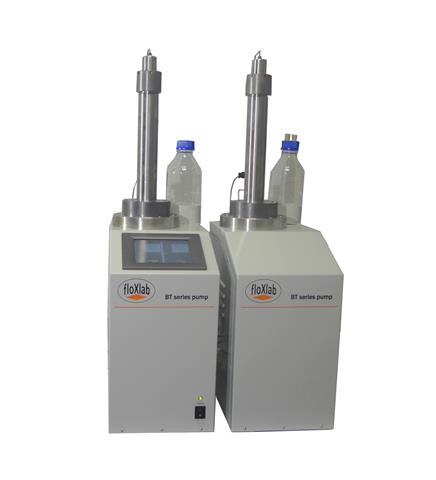

BTDP-series high pressure syringe pump

Description

The BTDP series combines two BTSP pump modules, enhancing system capabilities. Equipped with a pair of pneumatic powered three-way valves for both tank inlet and outlet delivery, the dual pump provides uninterrupted, continuous fluid flow across a comprehensive range of both pressure and temperature conditions. All functionalities and optional features inherent to the BTSP series pumps remain accessible as both individual pump modules can still operate autonomously.

Specifications


Model

Volume

(ml)

Pressure

(psi)

Max. flow rate

(ml/min)

Min. flow rate

(ml/min)

BTDP 50-30

2 x 50

30,000

20

0.0001

BTDP 100-10

2 x 100

10,000

45

0.0001

BTDP 125-20

2 x 125

20,000

30

0.0001

BTDP 175-15

2 x 175

15,000

30

0.0001

BTDP 250-10

2 x 250

10,000

60

0.0001

BTDP 500- 5

2 x 500

5,000

130

0.0001

BTDP 1000

2 x 1000

1,875

250

0.0001


EXTENDED BTDP MODELS:

The extended BTDP-series of benchtop single syringe pumps are engineered to accommodate applications that demand elevated volumetric capacities, flow rates, and pressures, exceeding the specifications of the standard BTDP series. Despite these advanced capabilities, both the hardware and software functionalities remain congruent across the series.


Model

Volume

(ml)

Pressure

(psi)

Max. flow rate

(ml/min)

Min. flow rate

(ml/min)

BTDP 150-30

2 x 150

30,000

20

0.0001

BTDP 250-20

 2 x 250 20,000 35 0.0001

BTDP 300-15

2 x 300

15,000

40

0.0001

BTDP 500- 10

2 x 500

10,000

70

0.0001

BTDP 1000-5

2 x 1000

5,000

130

0.0001


Benefits


Ready to use pump

Touch screen front panel (optional)

Pulse-free flow at all rates and pressures

Deliver or receive fluid

Control pump based on time, pressure, flow rate, fluid volume or events

Stainless steel or Hastelloy® wetted parts

High temperature operation (optional)

Mixer pump (optional)
