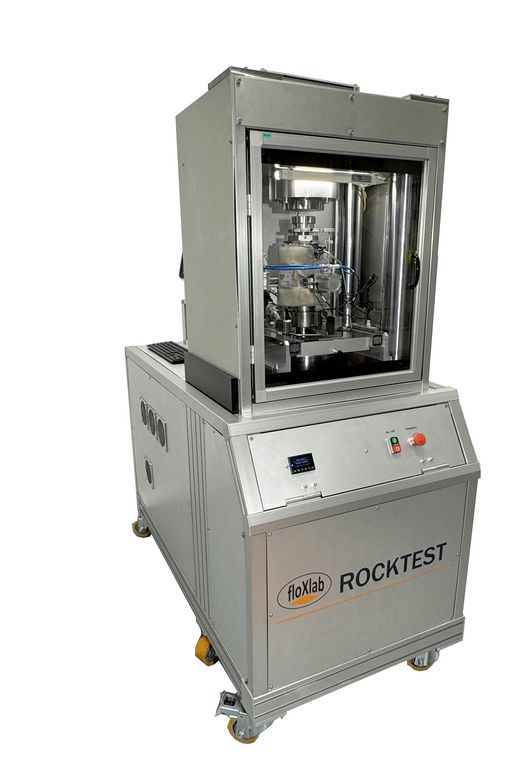

ROCKTEST - Rock uniaxial and triaxial compression tester

ASTM D7012, D7070, D2664, D3967

Description

The servo-controlled ROCKTEST is a streamlined and traditional rock compression testing system designed for conducting both uniaxial and triaxial compression tests on specimens. The tests conducted provide users with the capability to ascertain strength and elastic properties, shear strength under varying confining pressures, the angle of shearing resistance, cohesion, modulus of elasticity, Poisson’s ratio, and tensile strength. The system's adaptable configuration options encompass uniaxial compression platens, axial and circumferential deformation sensors, a triaxial cell, acoustic velocity measurement, permeability assessment, polyaxial fixtures, and indirect tension Brazilian fixtures.

Download: Rocktest applications.pdf


Specifications

Standard

ASTM D7012, D7070, D2664, D3967

Axial load

1,000 KN

Pressure

up to 70 Mpa

Temperature

Ambient

Specimen diameter

21.5 to to 54.7-mm (NX)

Specimen length

twice the diameter

Wetted parts

Stainless steel

Power supply

220 VAC, 50/60 Hz

Benefits


Versatile design
Cost-effective Rock compression tester
Designed for instructional purposes
Perfectly suited for educational and research establishments
Rapid specimen loading operations
Automated tests with pre-programed stress and strain path
Delivers unparalleled accuracy and reliability
