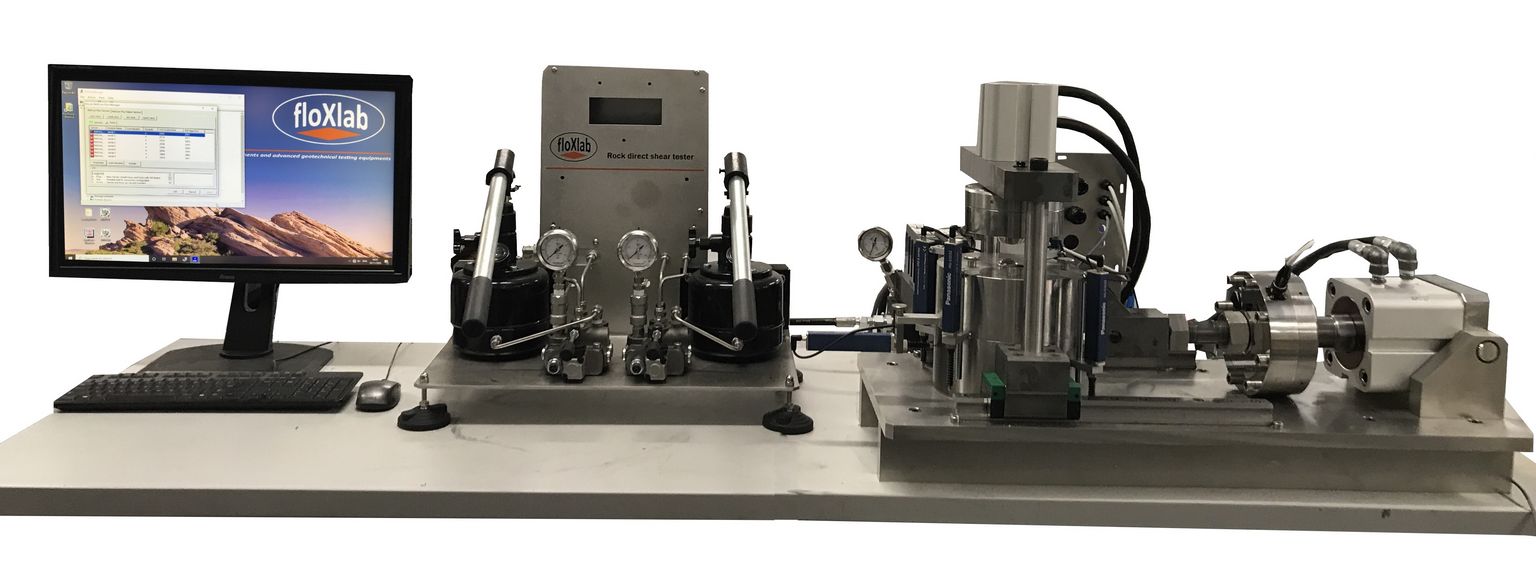

SHEARTEST-100M Manual rock direct shear tester

ASTM D5607 and ISRM suggested method

Description

The SHEARTEST-100M is a flexible and durable direct-shear system that is operated manually. This apparatus utilizes hydraulic actuators to apply both normal and shear forces simultaneously to a rock sample situated within a specimen shear box. The system records shear and normal displacements and forces through a dedicated computing station. These collected data are subsequently employed to calculate the shear strength properties of the rock, including the cohesion (c) and the friction angle (Ø).

Specifications

Standard

ASTM D5607 and ISRM suggested method

Normal load capacity

50 kN

Shear load capacity

100 kN

Max. normal displacement

25 mm

Max. shear displacement

25 mm

Sample ring diameter

150 mm

Sample box Height

150 mm

Weight

250 Kg

Power

110-220 VAC, 50/60 Hz

Benefits

ASTM-compliant

Cost effective instrument

Stiff and compact load reaction frame
