Description

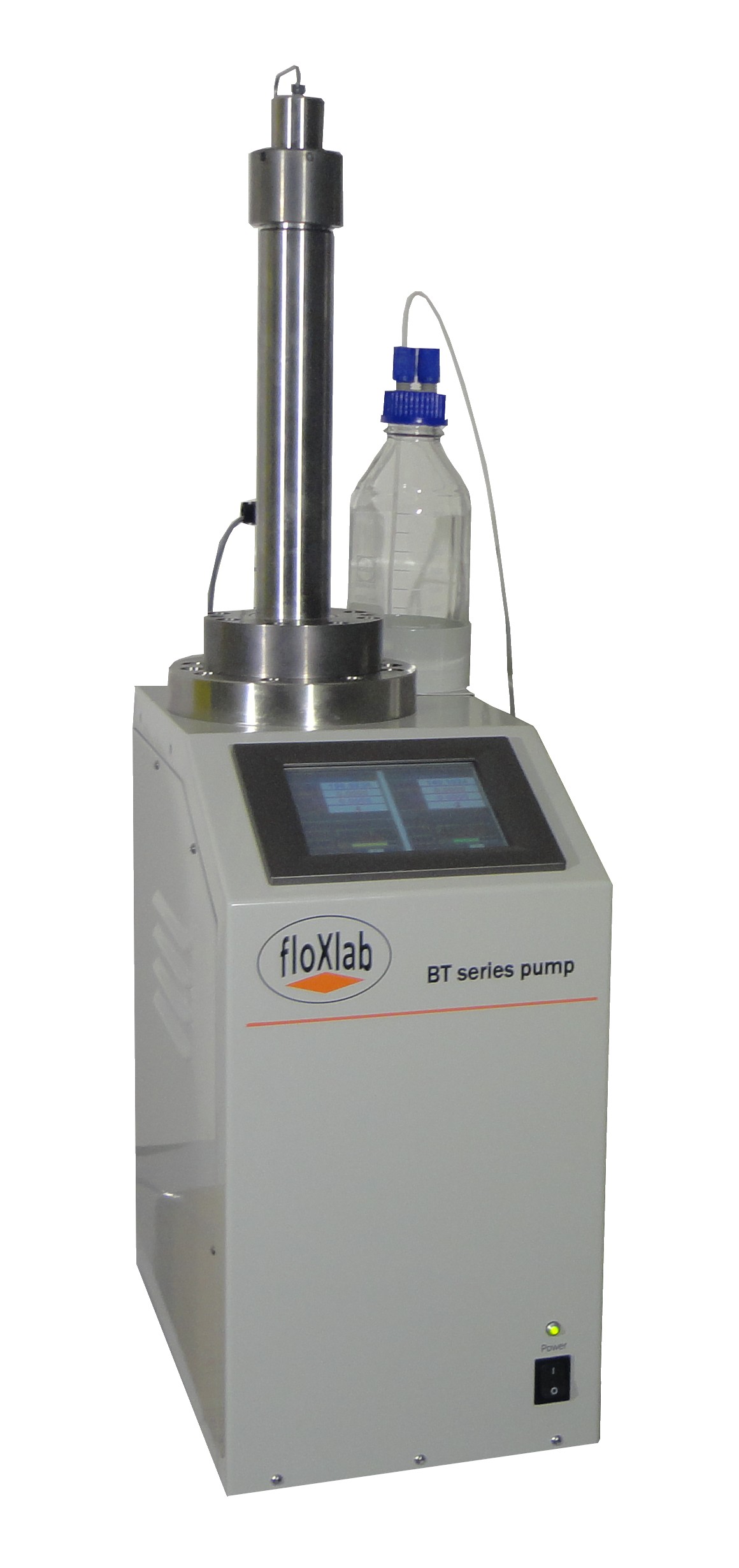

The ACP-series is designed to generate and maintain a constant confining pressure requested during rock test experiments. It can also be used to maintain a constant differential pressure between the pore pressure and confining pressure. The system consists of a positive displacement pump, an automatic dual valve, a fluid reservoir and two pressure transducers for pore and confining pressure control.
Specifications
|
Maximum pressure range
|
10,000 / 15,000 / 20,000 psi
|
|
Volume
|
250 / 175 / 125 ml
|
|
Wetted materials
|
Stainless Steel
|
|
Temperature
|
ambient
|
|
Type of fluids
|
hydraulic fluid
|
|
Nitrogen gas pressure requirement
|
100 psi
|
|
Power supply requirement
|
110-220 VAC, 50/60 Hz
|
|
Pressure control interface
|
Ethernet
|
Benefits
Extremely fast response to system pressure fluctuations
Can work at constant pressure or at constant net pressure
Pressure control via Ethernet communication port
