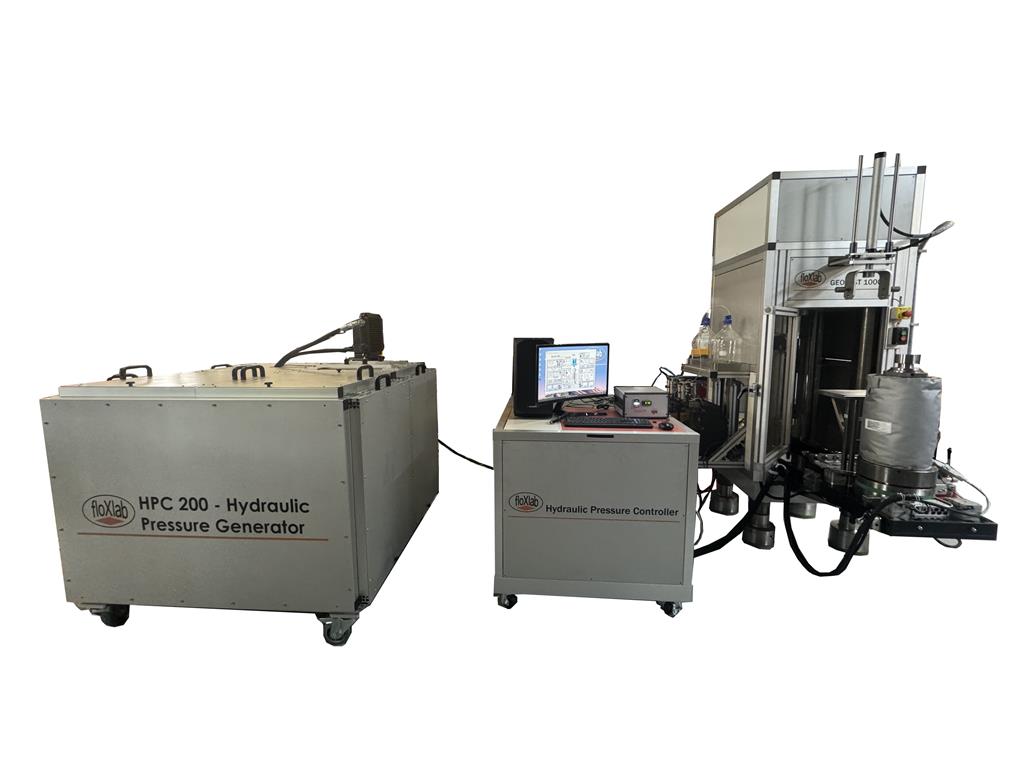

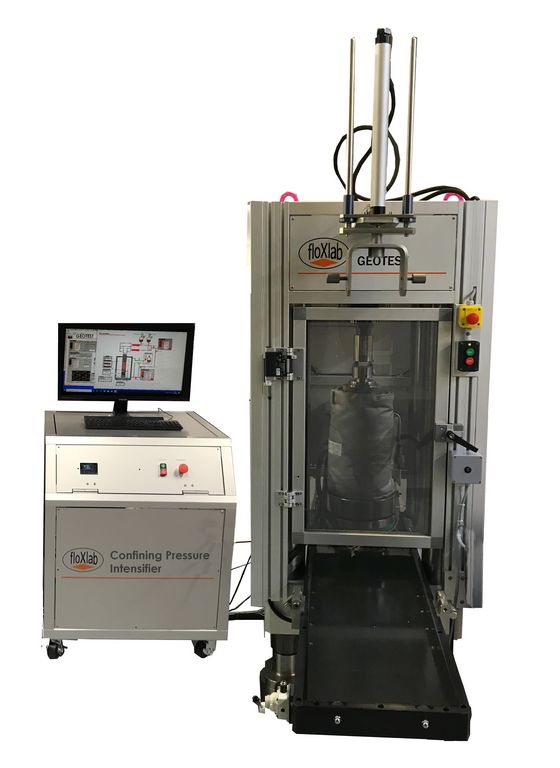

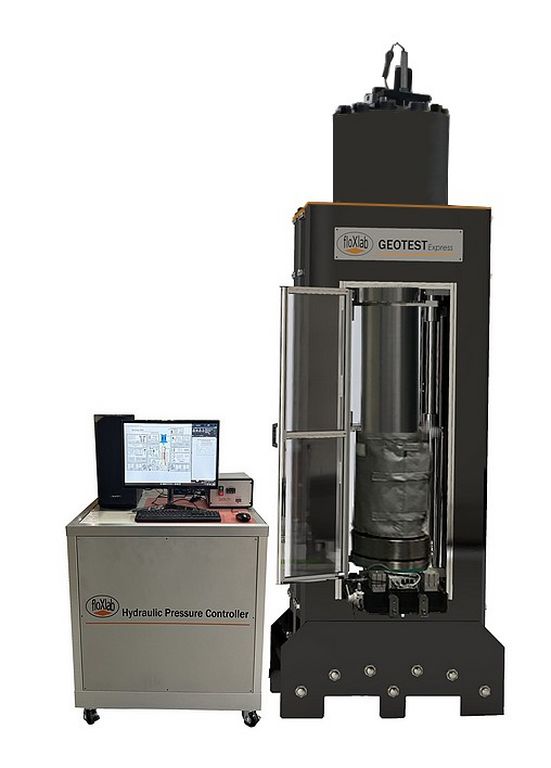

GEOTEST Advanced rock triaxial test system

ASTM D7012, D7070 and D5084

Description

The GEOTEST is a highly advanced rock triaxial testing apparatus that excels in conducting triaxial tests, creep tests, and post-failure behavior evaluations. This versatile system can determine a wide range of geomechanical properties under triaxial compression conditions, including rock deformation properties, rock compressive strength, and static elastic constants. Additionally, it offers optional fixtures to expand its capabilities, enabling the performance of unconfined compressive strength tests, indirect tensile strength tests, acoustic velocity measurements, dynamic elastic constants assessments, rock permeability evaluations, rock compressibility assessments, polyaxial compression tests, hydraulic fracturing experiments, and acoustic emission tests. The hydraulic compression frame applies axial loads to a sample securely mounted in a balanced triaxial cell. This system accommodates both static and cyclic tests. Its stress-testing capabilities are virtually limitless within the device's physical constraints, and experiments can be conducted under stress feedback, strain control, or manual operation. To enhance specimen loading speed and overall system efficiency, it incorporates an integrated hydraulic cell setup mechanism. This mechanism involves mounting and instrumenting the sample on the cell pedestal, lowering the cell body, securely locking it against the pedestal, and then positioning it under the piston loading area.


Download: Geotest applications.pdf


Specifications

Standard

ASTM D7012, D7070, D5084

Compression load capacity

1,000 / 2,000 /4,500 kN

Maximum confining pressure

70 / 140  / 210 MPa

Maximum pore pressure

70 / 140 / 210 MPa

Temperature

ambient and high temperature (option)

Specimen diameter

up to 100-mmm

Specimen length

Twice the diameter

Wetted parts

Stainless steel

Power supply

230-400 VAC, 3-phases, 50/60Hz

Benefits

Uses a balanced triaxial cell equipped with in-vessel radial and axial strain sensors
Static and cyclic compression tests
Automated tests with pre-programed stress and strain path
Delivers unparalleled accuracy and reliability
Heavy-duty, stiff, noise-free compression frame
Rapid specimen loading facilities
