TAC-series Triaxial acoustic cell

ASTM D2845

Description

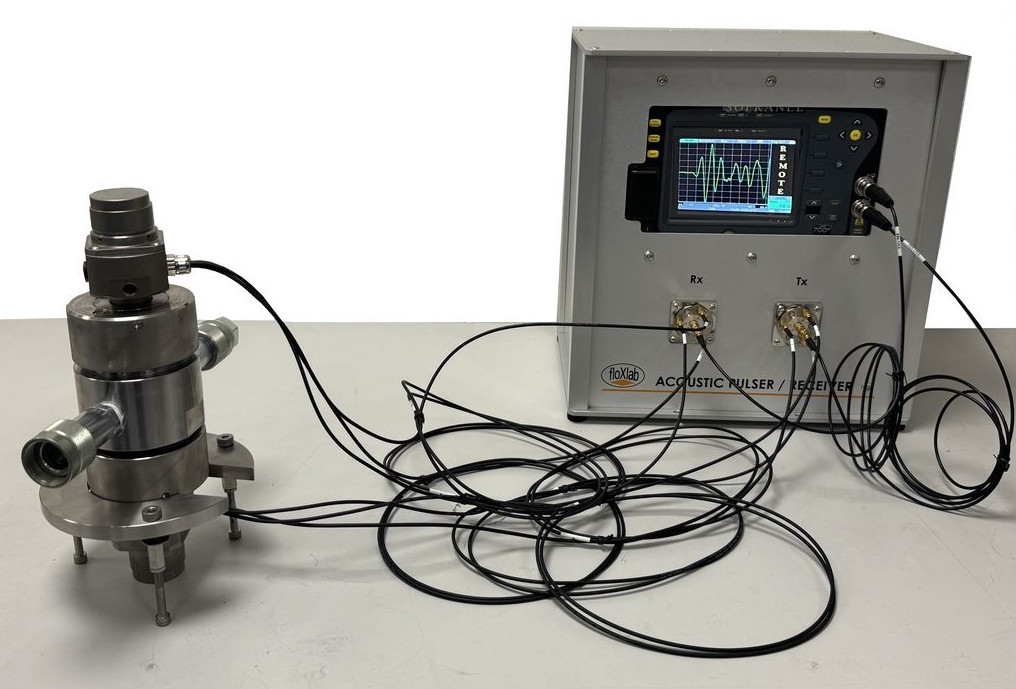

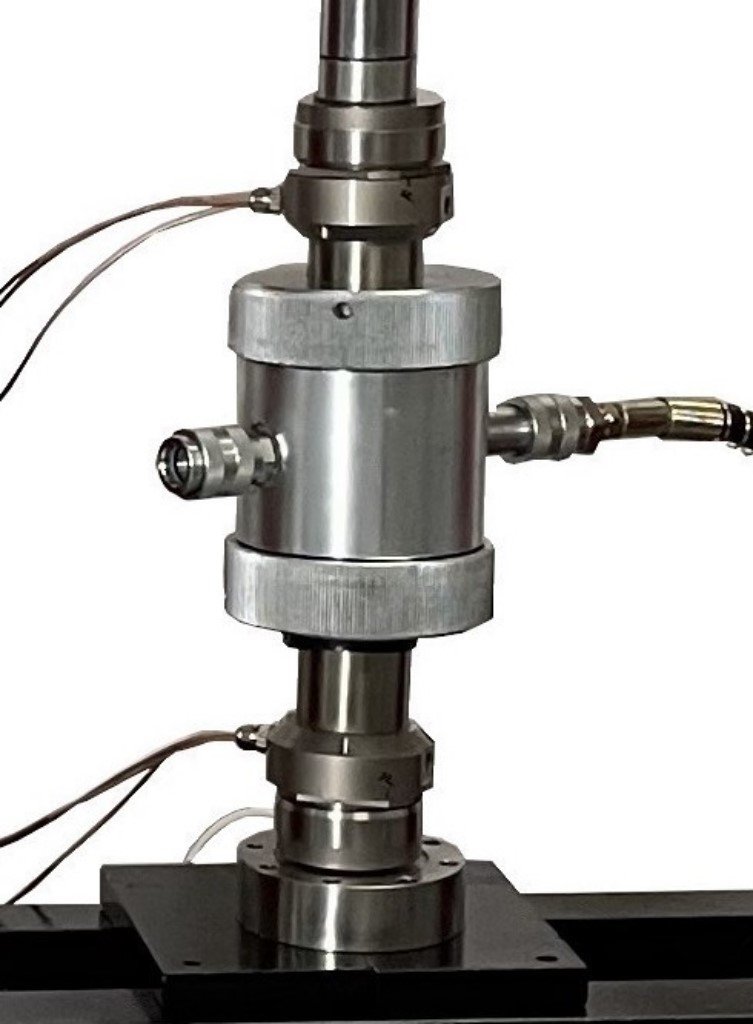

The triaxial acoustic cell is designed to transmit compressional (P) and shear waves (S1/S2) through rock samples under conditions of overburden pressure and room temperature. The sample is positioned between two adjustable loading pistons and compressed using a load frame. A specialized sleeve serves to isolate the sample from the hydraulic confining fluid. A distinct advantage of this setup is the ability for quick sample loading and unloading, eliminating the need to drain the confining fluid or remove the core sleeve. The cell consists of a hollow steel cylinder with screw-on, detachable ends, along with two high-resistance spherically seated acoustic loading platens, a pair of female spherical seats, and an isolating sleeve. To apply the axial force to the sample, an external compression testing frame is necessary. Additionally, a high-pressure pump is required to produce the confining pressure.


Specifications


Standard

ASTM D2845

Specimen diameter

1-inch, 1.5-inches (other upon request)

Specimen length

Twice the diameter

Pressure

up to 10,000 psi

Temperature

ambient

Frequency

1 Mhz

Waves

P and S1 & S2


Benefits

Representative overburden pressure conditions

Short test duration

Cost effective


Download Acoustic cell brochure.pdf

up to 10,000 psi
