Description

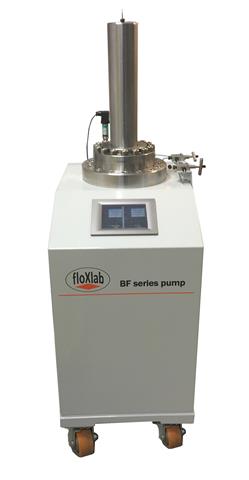

The BFSP-series benchfloor single syringe pumps accurately deliver specified pressure, flow rate and volume at both ambient and reservoir conditions. They can operate at either constant pressure or constant flow rate. In the former mode, a pre-defined specific volume can accurately be transferred. The pump is equipped with an accurate pressure sensor, two hand-operated valves for tank feeding and outlet delivery, a control panel and a storage tank. The assembly is mounted on a chassis supported by four heavy duty casters. Optionally, a computer data acquisition and supervision system can be provided. Furthermore, a variable temperature heating mantle can be supplied to heat the fluid up to 150°C. The BFSP series volumetric capacity is customizable, and while the standard material for wetted parts is a high grade stainless steel, hastelloy can be requested for corrosive fluid applications.
Specifications
| Model | Volume (ml) | Pressure (psi) | Max. flow rate (ml/min) | Min. flow rate (ml/min) |
| BFSP 500-15 | 500 | 15,000 | 40 | 0.0001 |
| BFSP 1000-15 | 1000 | 15,000 | 80 | 0.0001 |
| BFSP 500-25 | 500 | 25,000 | 50 | 0.0001 |
Benefits
Ready to use pump
Touch screen front panel
Pulse-free flow at all rates and pressures
Deliver or receive fluid
Control pump based on time, pressure, flow rate, fluid volume or events
Stainless steel or Hastelloy® wetted parts
High temperature operation (optional)
