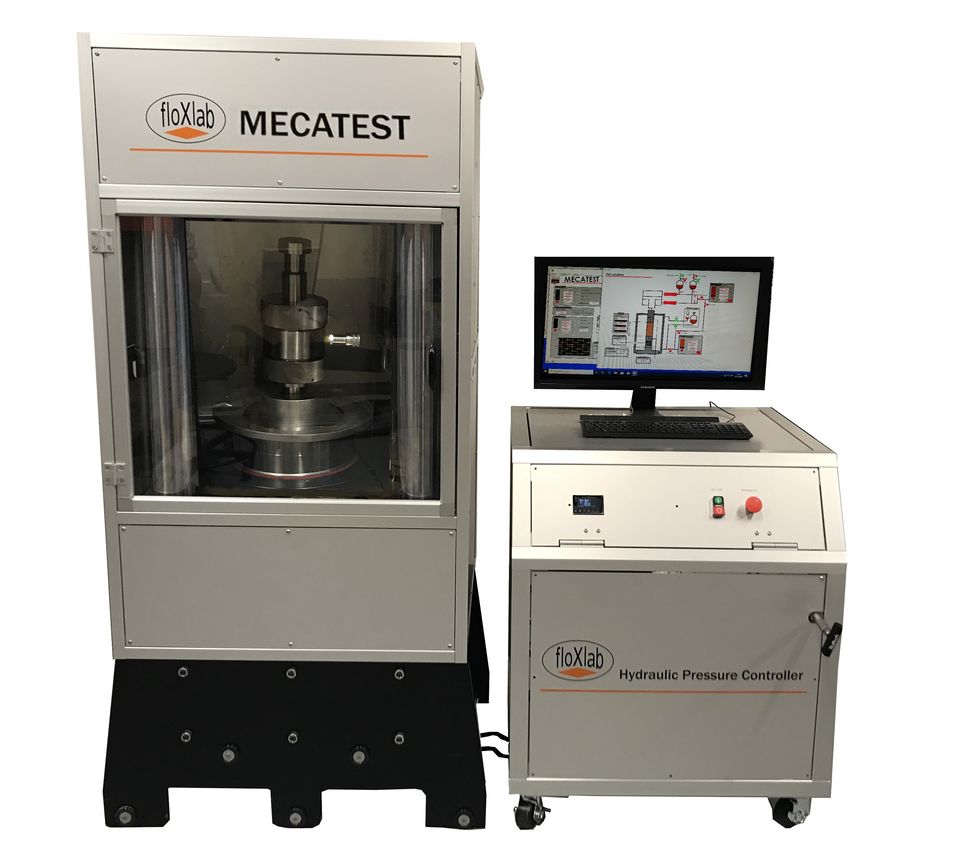

MECATEST Rock uniaxial and triaxial compression tester

ASTM D7012, D7070, D2664, D3967

Description

The servo-controlled MECATEST represents a conventional rock compression testing system with the capability to conduct both uniaxial and triaxial compression tests on large specimens. These tests enable users to derive valuable information such as strength and elastic properties, shear strength at varying confining pressures, angle of shearing resistance, cohesion, modulus of elasticity, Poisson’s ratio, and tensile strength. The system's configuration options include uniaxial compression platens, axial and circumferential deformation sensors, a triaxial cell, acoustic velocity measurements, permeability assessments, polyaxial fixtures, and indirect tension Brazilian fixtures.

Download: Mecatest applications.pdf



Specifications

Standard

ASTM D7012, D7070, D2664, D3967

Compression load capacity

3000 kN

Maximum confining pressure

 70 MPa

Temperature

ambient

Specimen diameter

from 54.7-mm up to 160-mm

Specimen length

Twice the diameter

Wetted parts

Stainless steel

Power supply

110-220VAC, 50/60Hz

Benefits


Multi-purpose machine capable of a wide range of uniaxial, acoustic  and triaxial compression tests
Automated tests with pre-programed stress and strain path
Delivers unparalleled accuracy and reliability
Heavy-duty, stiff, noise-free compression frame
