Description

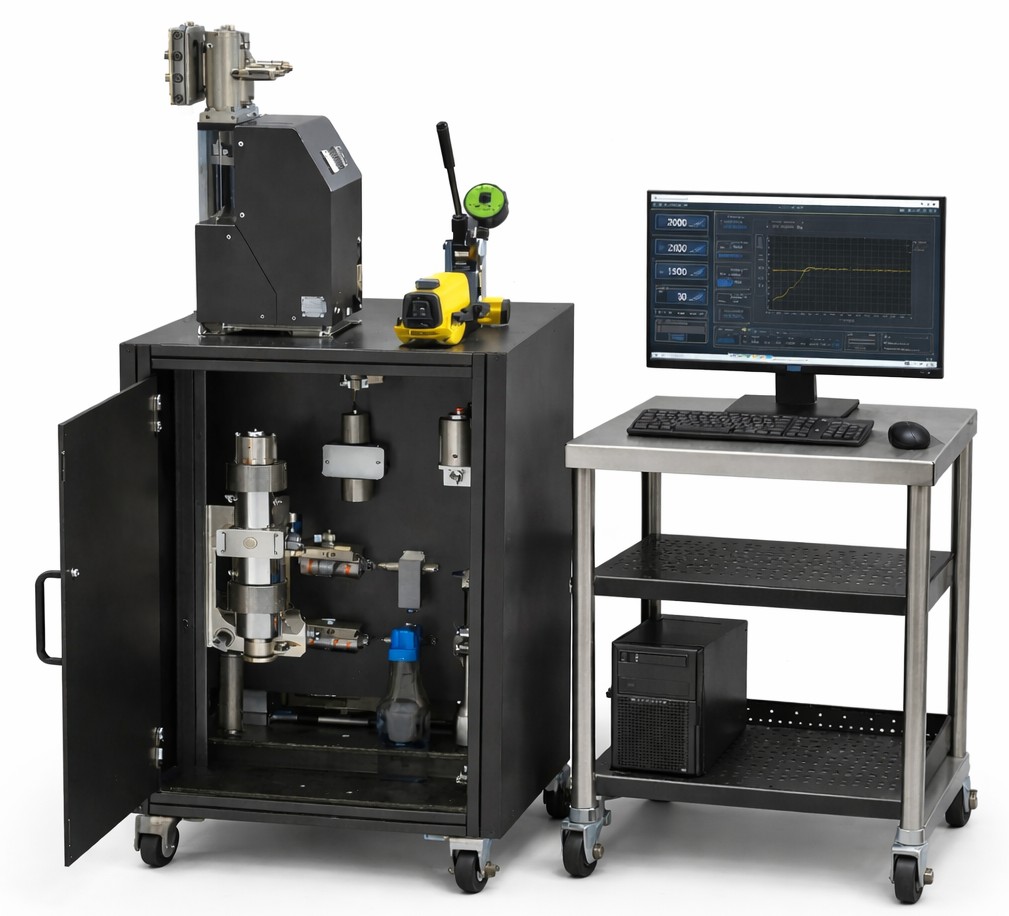

The SSP-700 determines the permeability of a rock core sample in accordance with Darcy’s Law. A controlled flow of pore fluid is injected through the core using a pore-pressure pump to determine permeability. The sample is enclosed in a jacket, placed inside a core holder, and subjected to the required confining pressure. Fluid is introduced at the inlet face, while a back-pressure regulator maintains a constant outlet pressure to ensure stable test conditions. The pressure drop across the sample is monitored using two differential pressure transducers: a low-range sensor for high-permeability samples and a high-range sensor for low-permeability samples. This dual-sensor setup ensures accurate measurements over a permeability range of approximately 0.01 millidarcy (md) to 1 darcy. The testing system consists of a liquid permeameter control cabinet, a pore-pressure injection pump, and a hydrostatic core holder with a diameter of either 1 inch or 1.5 inches.
Specifications
|
Permeability range
|
0.01 millidarcy to 1 darcy
|
|
Maximum confining pressure
|
70 Mpa (10,000psi)
|
|
Maximum pore pressure
|
70 Mpa (10,000psi)
|
|
Specimen diameter
|
1 inch, 1.5 inches
|
|
Specimen length
|
up to 3 inches
|
|
Fluid
|
Water, oil
|
|
Air requirement
|
100 psi
|
|
Power
|
110-220 VAC , 50/60 Hz
|
Benefits
* High accuracy: Dual pressure transducers ensure precise measurements over a wide permeability range.
*
Robust design: High-grade stainless steel core holder and enclosed cabinet provide durability and safe operation under high pressure.
*
Automated control: Real-time data acquisition and automatic permeability calculation reduce operator error.
