Description

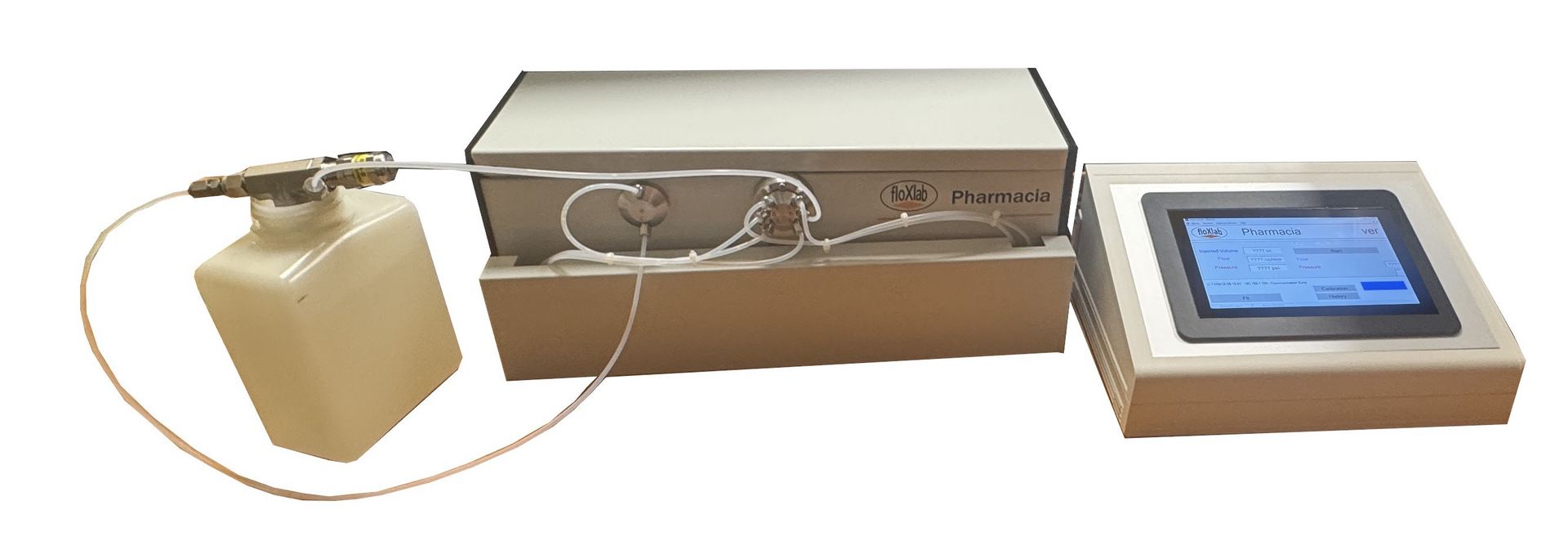

The Pharmacia metering pump is designed for high-accuracy liquid metering under continuous flow and pressure conditions, making it suitable for processes requiring highly stable and reproducible dosing, such as controlled reagent addition and continuous feed applications in medical, pharmaceutical, chemical, and biological systems. The pump incorporates a dual-piston architecture operating in antiphase, whereby one piston delivers fluid while the second piston simultaneously refills. This configuration, combined with an automatic switchover valve, minimizes pulsation and ensures a quasi-continuous flow profile. System operation is optimized for precision and repeatability through Floxlab’s dedicated data acquisition and control software, which enables fine, real-time adjustment of flow rate or pressure to meet specific process setpoints. The pump can be controlled either via a computer interface or an integrated touchscreen panel. The control software, compatible with both platforms, provides direct access to all operational functions, including pump start/stop commands, selection of constant flow or constant pressure control modes, input of operating parameters such as flow rate, pressure limits, and target volume, and continuous real-time monitoring of key process variables, including pressure, flow rate, and cumulative injected volume.
Spécifications
Volume: 2 x 14 ml
Pressure range: 0 to 300 psi
Flow rate range: 0.01 to 20 ml/min
Temperature: ambient
Wetted parts: Stainless Steel
Type of fluid: liquid
Weight: 10 kg
Power: 110-220 VAC , 50/60 Hz
Interface: Ethernet
Benefits
Precise, near-continuous flow for stable and repeatable dosing
Easy control with intuitive software and real-time monitoring
Wide compatibility for medical, pharma, chemical, and bio uses
Compact and low-maintenance design for easy integration
