Description

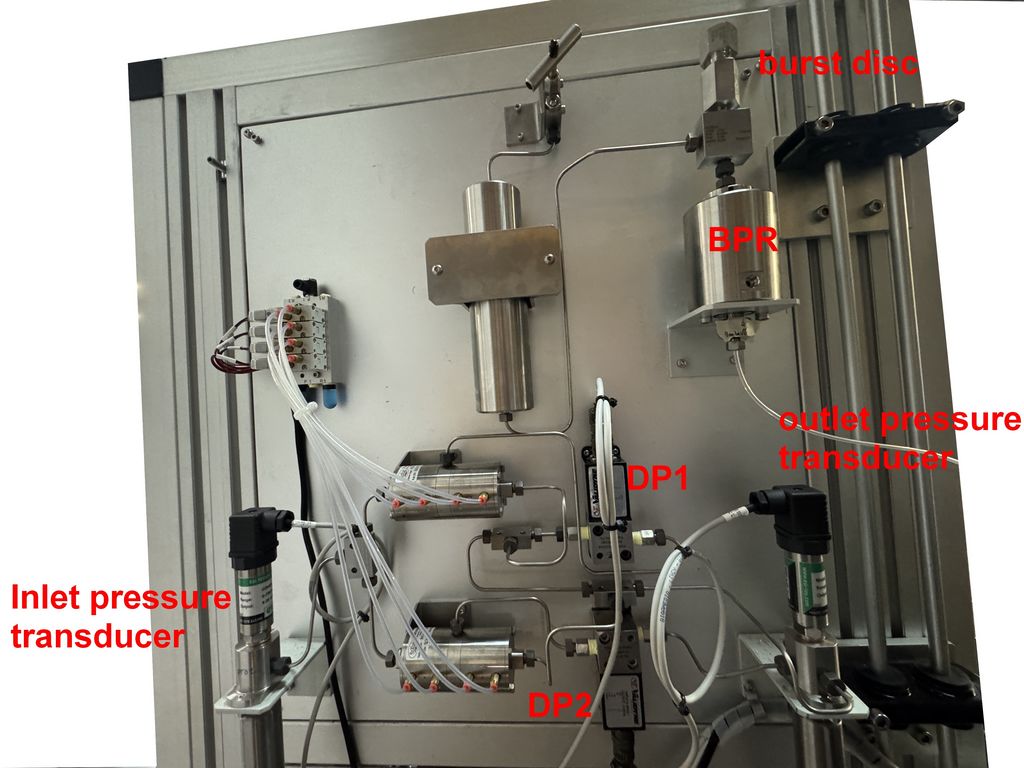

The liquid-permeameter delivers high-precision measurements by injecting a controlled hydraulic fluid flow through the core using a pore-pressure pump. Outlet pressure is stabilized by a back-pressure regulator, while two differential pressure transducers ensure accurate readings across a wide measurable range from 0.01 md to 1 darcy. Axial and confining stresses are automatically applied to replicate in-situ conditions and evaluate stress sensitivity, compaction, and anisotropy. The setup includes upstream and downstream pressure transducers (0–70 MPa, 0.2% FS accuracy), differential sensors with automatic overpressure protection, and a 70 MPa burst disc for enhanced safety. A nitrogen-buffered back-pressure regulator maintains constant downstream conditions. Integrated signal-conditioning electronics provide seamless data acquisition, real-time monitoring, and precise calculation of core permeability.
Specifications
|
Permeability range
|
0.01 md and 1 Darcy
|
|
Maximum pore pressure
|
70 Mpa (10,000psi)
|
|
Fluids
|
Water, oil
|
Benefits
* High measurement accuracy across 0.01 md to 1 darcy.
* Realistic in-situ simulation with full stress and pressure control.
* Safe, integrated operation with robust protection and real-time data.
