Description

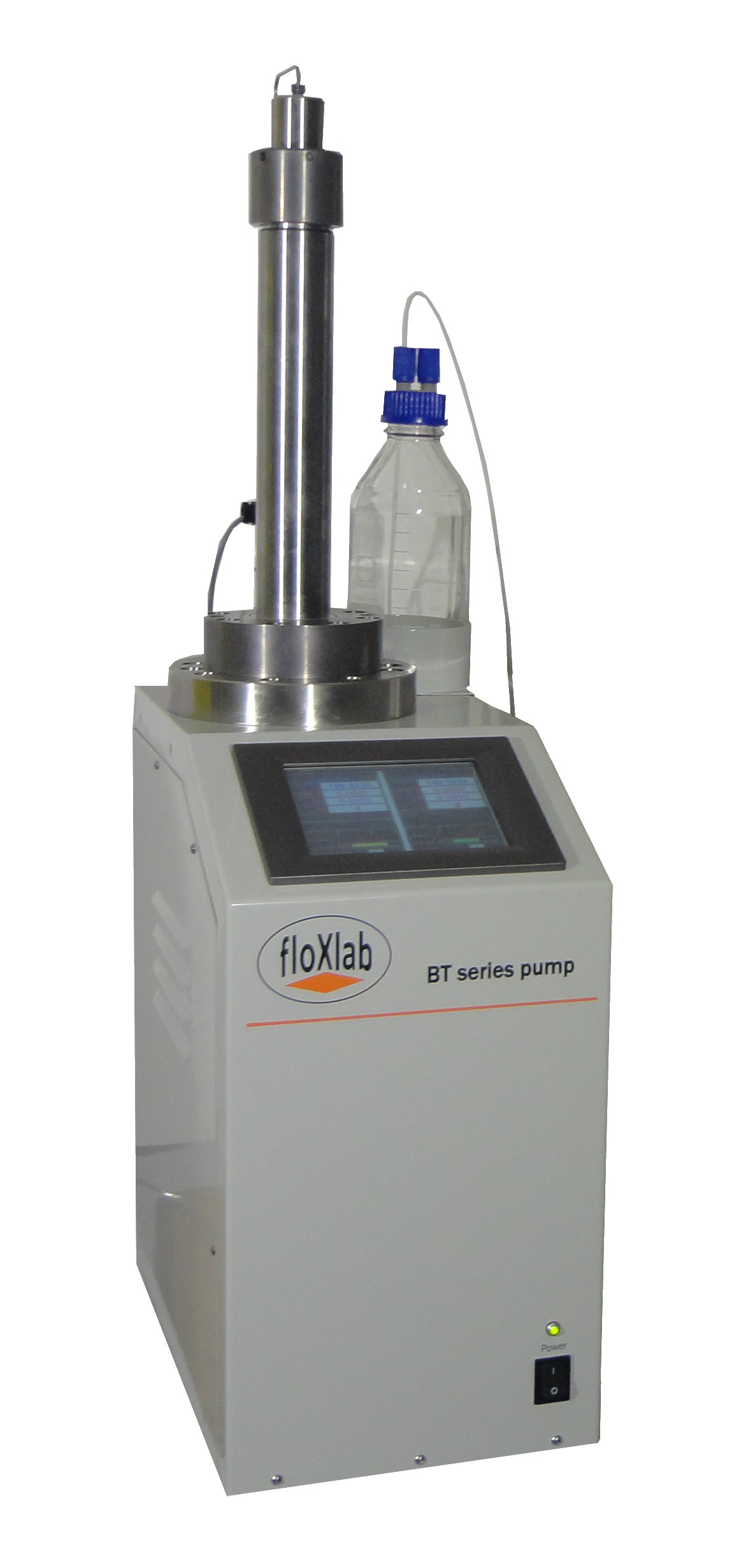

The BTSP-series are meticulously engineered for advanced applications requiring ultra-precise, pulse-free regulation of fluid flow, suitable for both inorganic fluids (e.g., brine, solvents) and organic fluids (e.g., hydrocarbons, microbial solutions). Capable of delivering specified hydraulic pressures, volumetric flow rates, and dispensed volumes, these pumps are adaptable with pressure capacities reaching as high as 40,000 psi. The unit offers multiple operating modes, including constant-pressure and constant-flow rate settings, and incorporates a high-precision pressure transducer for real-time monitoring. A dual manually-operated isolation valves is provided for controlled fluid inlet and outlet. The system is further complemented with dedicated data acquisition and control software, capable of advanced data analytics and system supervision. As for optional customizations, a digital control panel interface can be integrated for direct, computer-independent pump manipulation. Additionally, a variable-temperature heating mantle is available for fluidic thermal control up to 150°C. For applications requiring temperatures below ambient, an optional cooling jacket is available. This jacket encases the pump cylinder, allowing for thermally stable liquid flow through both the upper and lower hose connectors, thus ensuring consistent fluid temperature during operation. Occasionally, the pump cylinders can be equipped with a magnetically actuated stirring mechanism, enabling in-situ, comprehensive fluid mixing across a broad spectrum of pressure and temperature conditions. In terms of volumetric dispensing, the BTSP series offers customizable cylinder capacities to meet specific application requirements. While the standard material for wetted parts is a high grade stainless steel, hastelloy can be requested for corrosive fluid applications.
Specifications
Model | Volume (ml) | Pressure (psi) | Max. flow rate (ml/min) | Min. flow rate (ml/min) |
BTSP 20-40 | 20 | 40,000 | 7.5 | 0.0001 |
BTSP 50-30 | 50 | 30,000 | 20 | 0.0001 |
BTSP 100-10 | 100 | 10,000 | 45 | 0.0003 |
BTSP 125-20 | 125 | 20,000 | 30 | 0.0003 |
BTSP 175-15 | 175 | 15,000 | 30 | 0.0003 |
BTSP 250-10 | 250 | 10,000 | 60 | 0.0003 |
BTSP 500- 5 | 500 | 5,000 | 130 | 0.001 |
BTSP 1000 | 1000 | 1,875 | 250 | 0.002 |
EXTENDED BTSP MODELS:
The extended BTSP-series of benchtop single syringe pumps are engineered to accommodate applications that demand elevated volumetric capacities, flow rates, and pressures, exceeding the specifications of the standard BTSP series. Despite these advanced capabilities, both the hardware and software functionalities remain congruent across the series.
Model | Volume (ml) | Pressure (psi) | Max. flow rate (ml/min) | Min. flow rate (ml/min) |
BTSP 150-30 | 150 | 30,000 | 20 | 0.0001 |
BTSP 250-20
| 250 | 20,000 | 35 | 0.0002 |
BTSP 300-15 | 300 | 15,000 | 40 | 0.0002 |
BTSP 500- 10 | 500 | 10,000 | 70 | 0.0004 |
BTSP 1000-5 | 1000 | 5,000 | 130 | 0.001 |
Benefits
Ready to use pump
Touch screen front panel (optional)
Pulse-free flow at all rates and pressures
Deliver or receive fluid
Control pump based on time, pressure, flow rate, fluid volume or events
Stainless steel or Hastelloy® wetted parts
High temperature operation (optional)
Mixer pump (optional)
