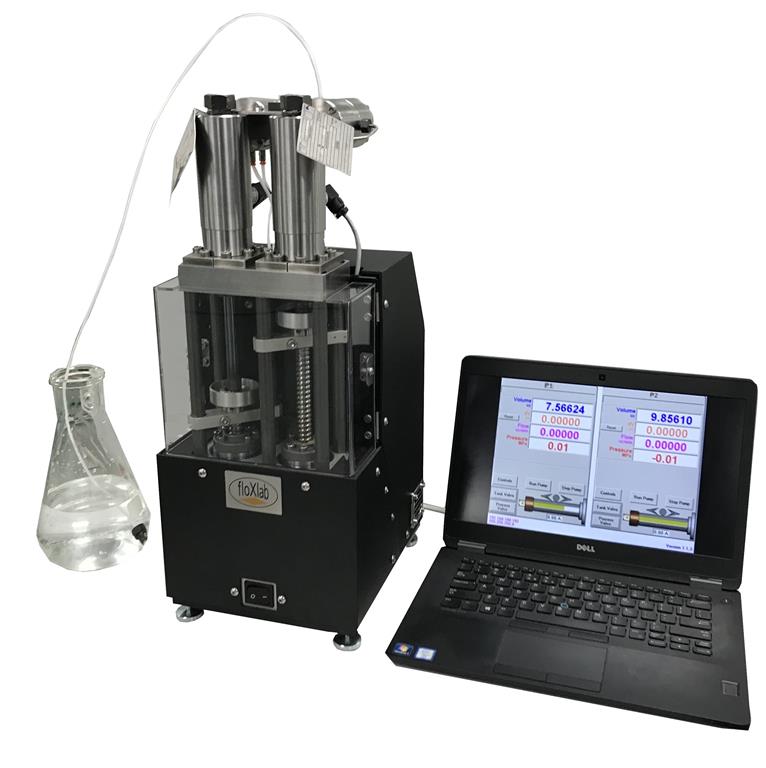

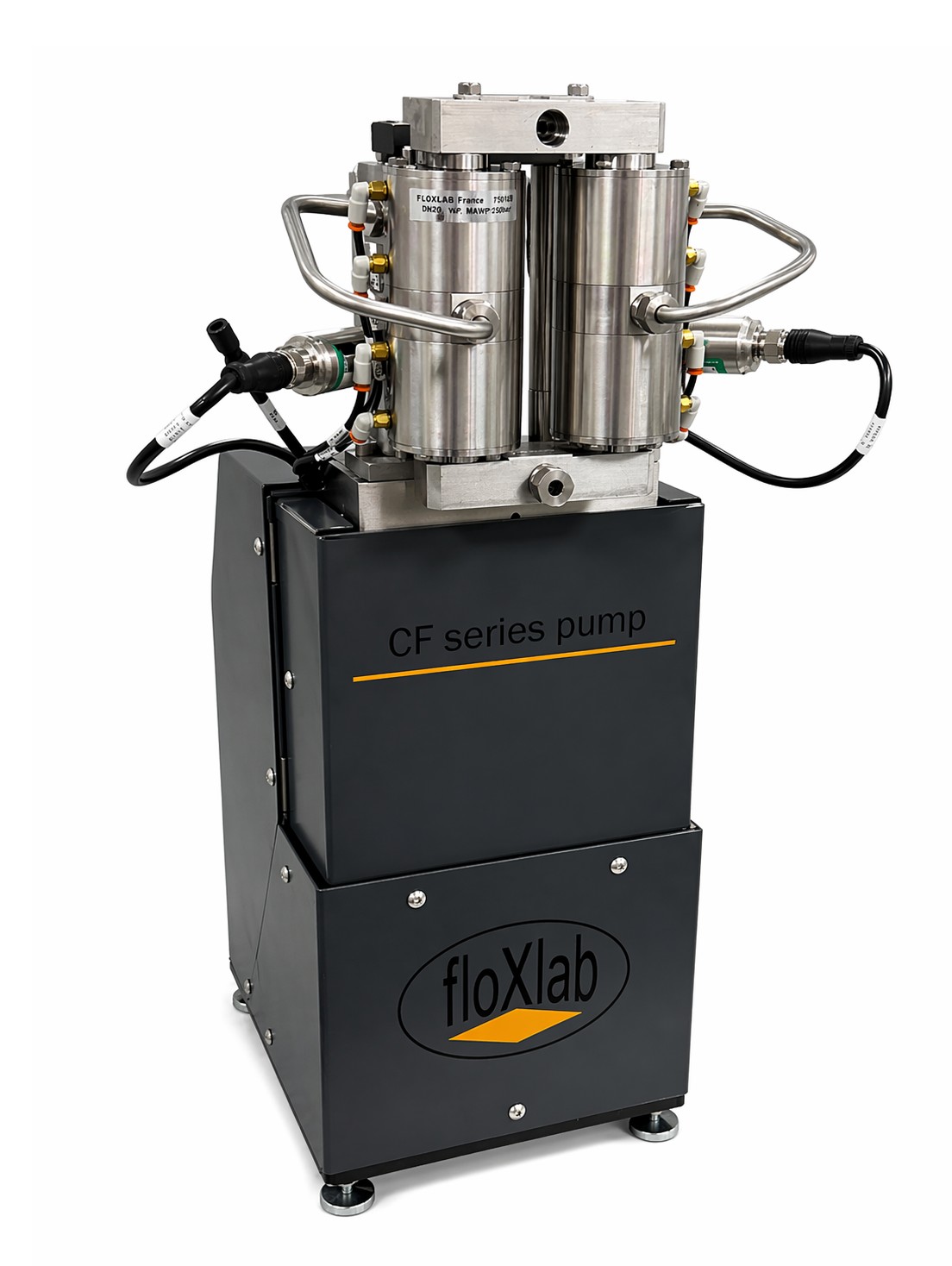

CF-series continuous flow pump



Description

The Floxlab CF Series pumps deliver unparalleled accuracy and repeatability, ensuring the critical pulse-free, high-pressure flow metering needed in diverse industrial and research environments. The CF Series pumps feature dual motor-driven pistons, each independently controlled, and employ a unique pre-pressurization step in every piston cycle, moving away from the traditional use of reciprocating pistons. As one cylinder dispenses fluid, its counterpart rapidly refills and then initiates pre-pressurization to equalize the pressure with the first cylinder. The system utilizes individual pressure transducers for each cylinder, a bespoke microcontroller, and advanced software algorithms to guarantee exact pressure measurement and synchronization. This ensures a seamless transition between cylinders without any noticeable pulse. The smooth, pulse-free fluid flow is further refined by an automatic valve with zero dead volume. Additionally, the pistons can be operated independently for greater operational versatility.

Specifications


Model

Pressure

(psi)

Volume

(ml)

Max. flow rate

(ml/min)

Min. flow rate

(ml/min)

CF 3

3,000

2 x 40

80

0.0001

CF 6

6,000

2 x 32

55

0.0001

CF 12

12,000

2 x 15

30

0.0001

CF 15

15,000

2 x 12

25

0.0001

CF 20

20,000

2 x 10

15

0.0001

CF 30

30,000

2 x 5

5

0.0001


Benefits



Unlimited continuous flow

Pulse-free flow at all rates and pressures

Deliver or receive fluid

Control pump based on time, pressure, flow rate, fluid volume or events

Stainless steel or Hastelloy wetted parts

Sub-ambient, ambient and high temperature versions (up to 160°C)
