Description

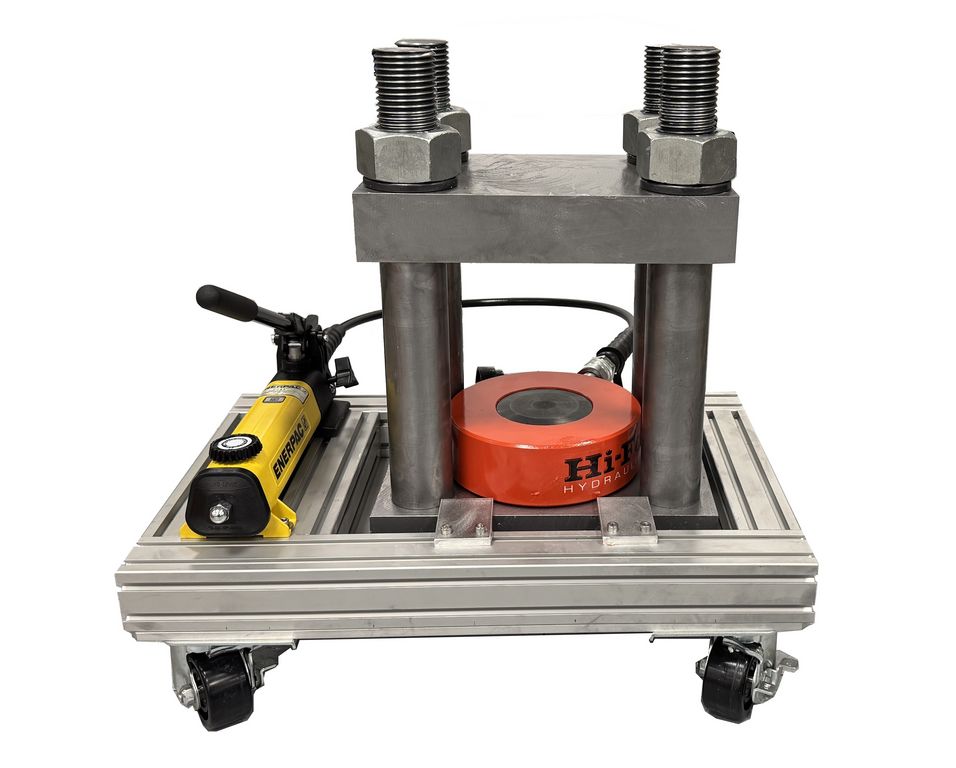

The load cell calibrator is a precision laboratory instrument designed for the accurate calibration of load cells used in testing presses such as the GEOTEST and ROCKTEST series. It operates by comparing the readings of the load cell under test with a high-accuracy reference sensor, ensuring precise and reliable force measurements. The press generates loads through a hydraulic actuator powered by a hand pump. A digital display provides real-time readings of both reference and test sensors with ±0.02 % accuracy. Built with a sturdy frame, the system ensures stability and repeatability during calibration. The calibration process involves applying controlled pressure and recording data to produce regression and calibration curves, guaranteeing consistent performance and traceable results for a wide range of load cells.
Specifications
|
Force
|
1000, 1500, 2000 KN
|
|
Operating temperature
|
Ambient
|
|
Accuracy
|
+/- 0.02% FS
|
|
Weight
|
170 kg
|
|
Dimensions
|
60x40x56 cm
|
Benefits
High accuracy: The instrument ensures precise calibration with real-time force measurement.
Wide range: It can generate forces for various load cell capacities.
Reliable results: Consistent force application improves repeatability and performance.
