Description

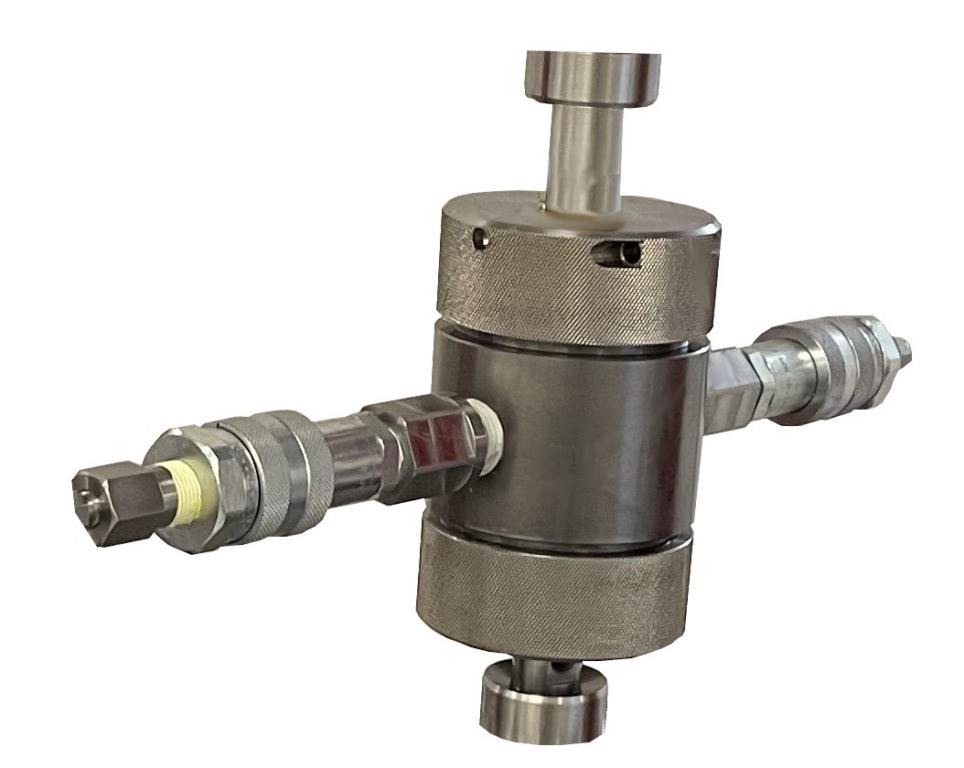

The HOEK Cell is designed for use in triaxial compression tests that provide vital data on rock strength and elasticity, including parameters such as shear strength under varying confining pressures, internal friction angle, cohesion intercept, and Young’s modulus. The Hoek Cell consists of a hollow steel cylinder with screw-on end caps, two high-strength spherically seated loading pistons, and a protective polyurethane sleeve. The cylinder includes two self-sealing couplings: one for connection to the hydraulic pressure system and another for venting air from the cell chamber. During testing, the rock specimen is placed between two movable loading pistons and subjected to axial compression using a load frame. A specialized sleeve ensures that the sample remains isolated from the hydraulic confining fluid. Three HOEK cell models are available. Each model is designed to accommodate specimens of various diameters, ranging from 21.5 mm to 101.6 mm. Polyurethane sleeves can be replaced with Viton sleeves for high-temperature applications. When equipped with a Viton sleeve and a heating jacket, the HOEK Cell provides an efficient and reliable solution for performing triaxial tests at elevated temperatures. Optionally, the cell can be fitted with acoustic platens to enable acoustic velocity measurements during testing. For enhanced data acquisition, the cell can optionally be fitted with integrated strain gauges, enabling detailed analysis of the failure envelope in addition to the previously mentioned rock mechanical properties.
Download Hoek cell brochure.pdf
Specifications
|
Standard
|
ASTM (D7012)
|
|
Maximum confining pressure
|
70 MPa (10,000 psi)
|
|
Temperature range
|
Ambient to 150°C (option)
|
|
specimen diameter
|
21.5-mm to 4-inches
|
|
Specimen length
|
twice the diameter
|
|
Wetted part material
|
Stainless steel
|
|
Pore port
|
1/8 inch
|
|
Confining port
|
3/8 inch
|
Benefits
ASTM D2664 compliant – Reliable and standardized testing performance
Wide specimen range – Three cell models covering diameters from 21.5 mm to 101.6 mm
High confining pressure capacity – Up to 70 MPa (10,000 psi)
Robust stainless-steel construction – Ensuring durability and corrosion resistance
Versatile configuration – Compatible with strain gauges, permeability platens, and additional accessories
High-temperature capability – Up to 150°C with Viton sleeve and heating jacket
Acoustic monitoring option – Integration of acoustic platens for velocity measurements
